Excel分组的存储结构浅析

发表于 | 分类于 | | 浏览 次
字数统计: 1.7k | 阅读时长 ≈ 9

WPS 中Excel 创建组数据存储分析

在工作中常遇到长篇幅的数据报表。

将表格数据分组显示可以更加直观的让我们观察数据、整理数据。

upload successful

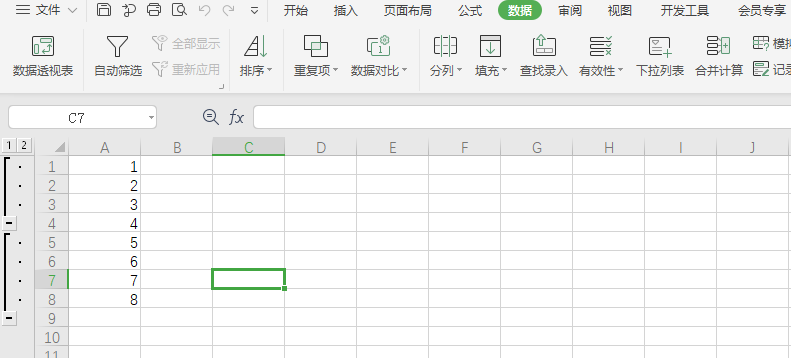

如上图所示,探究下其文件存储格式

行分组

  • 行方向的分组

两个行分组

  • 两个行分组 直接必须至少空一行,否则会变成一个行分组

upload successful

  • 数据结构 sheet1.xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<worksheet xmlns="http://schemas.openxmlformats.org/spreadsheetml/2006/main" xmlns:r="http://schemas.openxmlformats.org/officeDocument/2006/relationships" xmlns:xdr="http://schemas.openxmlformats.org/drawingml/2006/spreadsheetDrawing" xmlns:x14="http://schemas.microsoft.com/office/spreadsheetml/2009/9/main" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:etc="http://www.wps.cn/officeDocument/2017/etCustomData">
    <sheetPr/>
    <dimension ref="A1:A8"/>
    <sheetViews>
        <sheetView tabSelected="1" workbookViewId="0">
            <selection activeCell="A5" sqref="A5:A8"/>
        </sheetView>
    </sheetViews>
    <sheetFormatPr defaultColWidth="9" defaultRowHeight="14.25" outlineLevelRow="7"/>
    <sheetData>
        // row 上带有了 outlineLevel 代表是行分组 值 是1 代表了是1层级
        //层级代表了是否有嵌套,可以见 行分组嵌套
        <row r="1" outlineLevel="1" spans="1:1">
            <c r="A1">
                <v>1</v>
            </c>
        </row>
        <row r="2" outlineLevel="1" spans="1:1">
            <c r="A2">
                <v>2</v>
            </c>
        </row>
        <row r="3" outlineLevel="1" spans="1:1">
            <c r="A3">
                <v>3</v>
            </c>
        </row>
        // 第4行没有 所以 页面上 是两个行分组 如果第4行也有 应该会变成一个行分组
        <row r="4" spans="1:1">
            <c r="A4">
                <v>4</v>
            </c>
        </row>
        <row r="5" outlineLevel="1" spans="1:1">
            <c r="A5">
                <v>5</v>
            </c>
        </row>
        <row r="6" outlineLevel="1" spans="1:1">
            <c r="A6">
                <v>6</v>
            </c>
        </row>
        <row r="7" outlineLevel="1" spans="1:1">
            <c r="A7">
                <v>7</v>
            </c>
        </row>
        <row r="8" outlineLevel="1" spans="1:1">
            <c r="A8">
                <v>8</v>
            </c>
        </row>
    </sheetData>
    <pageMargins left="0.7" right="0.7" top="0.75" bottom="0.75" header="0.3" footer="0.3"/>
    <headerFooter/>
</worksheet>

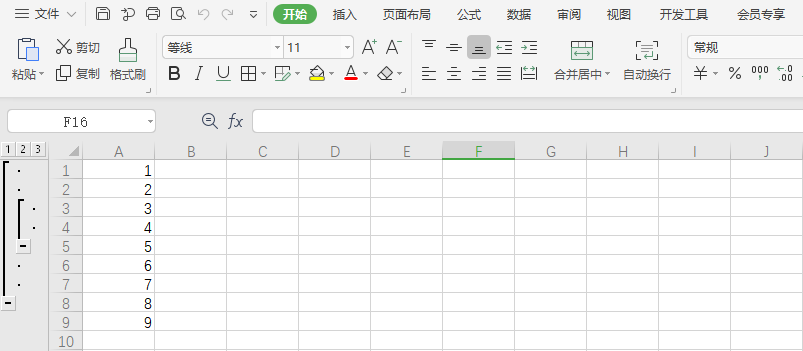

行分组嵌套

  • 一个行分组中包括了另一个行分组

upload successful

  • 数据结构 sheet1.xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<worksheet xmlns="http://schemas.openxmlformats.org/spreadsheetml/2006/main" xmlns:r="http://schemas.openxmlformats.org/officeDocument/2006/relationships" xmlns:xdr="http://schemas.openxmlformats.org/drawingml/2006/spreadsheetDrawing" xmlns:x14="http://schemas.microsoft.com/office/spreadsheetml/2009/9/main" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:etc="http://www.wps.cn/officeDocument/2017/etCustomData">
    <sheetPr/>
    <dimension ref="A1:A9"/>
    <sheetViews>
        <sheetView tabSelected="1" workbookViewId="0">
            <selection activeCell="A3" sqref="A3:A4"/>
        </sheetView>
    </sheetViews>
    <sheetFormatPr defaultColWidth="9" defaultRowHeight="14.25"/>
    <sheetData>
        <row r="1" outlineLevel="1" spans="1:1">
            <c r="A1">
                <v>1</v>
            </c>
        </row>
        <row r="2" outlineLevel="1" spans="1:1">
            <c r="A2">
                <v>2</v>
            </c>
        </row>
        // outlineLevel 层级为 2  嵌入到了 为1的层级
        <row r="3" outlineLevel="2" spans="1:1">
            <c r="A3">
                <v>3</v>
            </c>
        </row>
        <row r="4" outlineLevel="2" spans="1:1">
            <c r="A4">
                <v>4</v>
            </c>
        </row>
        <row r="5" outlineLevel="1" spans="1:1">
            <c r="A5">
                <v>5</v>
            </c>
        </row>
        <row r="6" outlineLevel="1" spans="1:1">
            <c r="A6">
                <v>6</v>
            </c>
        </row>
        <row r="7" outlineLevel="1" spans="1:1">
            <c r="A7">
                <v>7</v>
            </c>
        </row>
        <row r="8" spans="1:1">
            <c r="A8">
                <v>8</v>
            </c>
        </row>
        <row r="9" spans="1:1">
            <c r="A9">
                <v>9</v>
            </c>
        </row>
    </sheetData>
    <pageMargins left="0.7" right="0.7" top="0.75" bottom="0.75" header="0.3" footer="0.3"/>
    <headerFooter/>
</worksheet>

列分组

  • 列方向的分组

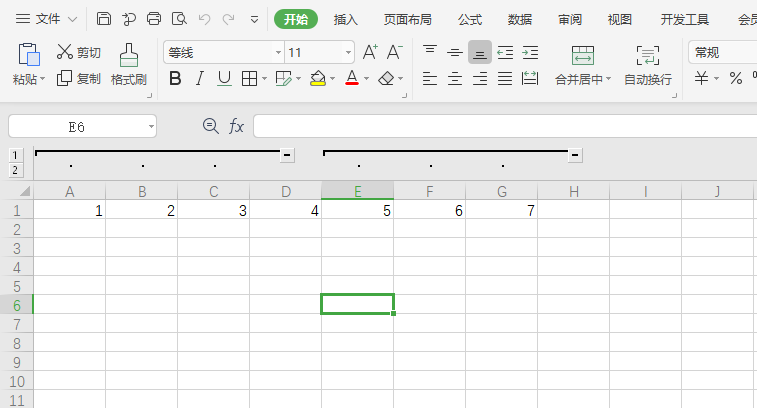

两个列分组

  • 两个列方向的分组 分组直接至少空一列 否则会变成一个列分组

upload successful

  • 数据结构 sheet1.xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<worksheet xmlns="http://schemas.openxmlformats.org/spreadsheetml/2006/main" xmlns:r="http://schemas.openxmlformats.org/officeDocument/2006/relationships" xmlns:xdr="http://schemas.openxmlformats.org/drawingml/2006/spreadsheetDrawing" xmlns:x14="http://schemas.microsoft.com/office/spreadsheetml/2009/9/main" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:etc="http://www.wps.cn/officeDocument/2017/etCustomData">
    <sheetPr/>
    <dimension ref="A1:G1"/>
    <sheetViews>
        <sheetView tabSelected="1" workbookViewId="0">
            <selection activeCell="E1" sqref="E1:G1"/>
        </sheetView>
    </sheetViews>
    <sheetFormatPr defaultColWidth="9" defaultRowHeight="14.25" outlineLevelCol="6"/>
    <cols>
        //这里记录 列方向的 分组信息
        <col min="1" max="3" width="9" outlineLevel="1"/>
        <col min="5" max="7" width="9" outlineLevel="1"/>
    </cols>
    <sheetData>
        <row r="1" spans="1:7">
            <c r="A1">
                <v>1</v>
            </c>
            <c r="B1">
                <v>2</v>
            </c>
            <c r="C1">
                <v>3</v>
            </c>
            <c r="D1">
                <v>4</v>
            </c>
            <c r="E1">
                <v>5</v>
            </c>
            <c r="F1">
                <v>6</v>
            </c>
            <c r="G1">
                <v>7</v>
            </c>
        </row>
    </sheetData>
    <pageMargins left="0.7" right="0.7" top="0.75" bottom="0.75" header="0.3" footer="0.3"/>
    <headerFooter/>
</worksheet>

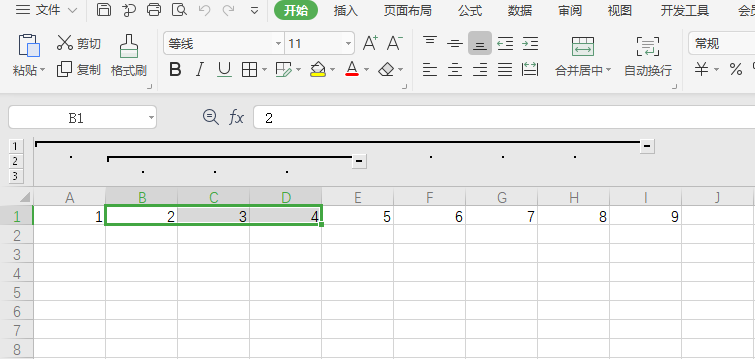

列分组嵌套

  • 一个列分组中包括另一个列分组

upload successful

  • 数据结构 sheet1.xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<worksheet xmlns="http://schemas.openxmlformats.org/spreadsheetml/2006/main" xmlns:r="http://schemas.openxmlformats.org/officeDocument/2006/relationships" xmlns:xdr="http://schemas.openxmlformats.org/drawingml/2006/spreadsheetDrawing" xmlns:x14="http://schemas.microsoft.com/office/spreadsheetml/2009/9/main" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:etc="http://www.wps.cn/officeDocument/2017/etCustomData">
    <sheetPr/>
    <dimension ref="A1:I1"/>
    <sheetViews>
        <sheetView tabSelected="1" workbookViewId="0">
            <selection activeCell="B1" sqref="B1:D1"/>
        </sheetView>
    </sheetViews>
    <sheetFormatPr defaultColWidth="9" defaultRowHeight="14.25"/>
    <cols>
        // 同样逻辑 通过outlineLevel 层级描述嵌套
        <col min="1" max="1" width="9" outlineLevel="1"/>
        <col min="2" max="4" width="9" outlineLevel="2"/>
        <col min="5" max="8" width="9" outlineLevel="1"/>
    </cols>
    <sheetData>
        <row r="1" spans="1:9">
            <c r="A1">
                <v>1</v>
            </c>
            <c r="B1">
                <v>2</v>
            </c>
            <c r="C1">
                <v>3</v>
            </c>
            <c r="D1">
                <v>4</v>
            </c>
            <c r="E1">
                <v>5</v>
            </c>
            <c r="F1">
                <v>6</v>
            </c>
            <c r="G1">
                <v>7</v>
            </c>
            <c r="H1">
                <v>8</v>
            </c>
            <c r="I1">
                <v>9</v>
            </c>
        </row>
    </sheetData>
    <pageMargins left="0.7" right="0.7" top="0.75" bottom="0.75" header="0.3" footer="0.3"/>
    <headerFooter/>
</worksheet>
